Plastikgeflügeltrinker mit Beinen

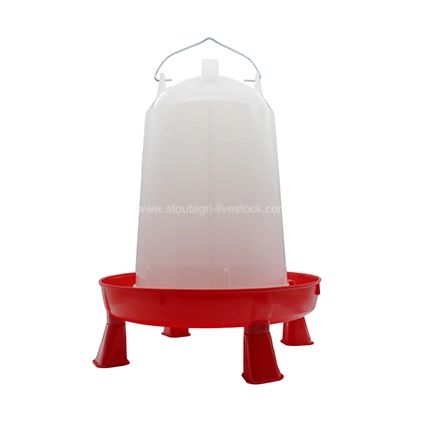

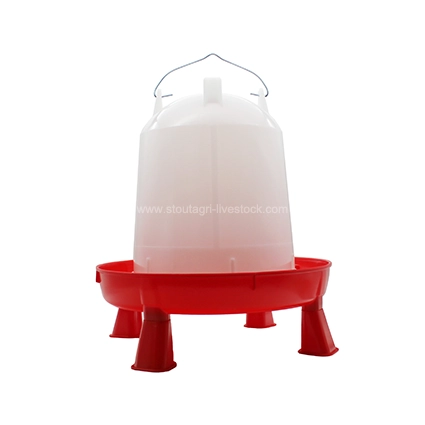

Der Plastikgeflügeltrinker mit Beinen provide a practical water supply option for poultry houses where birds drink from floor-level or elevated equipment. The drinker uses a gravity-fed structure with a semi-translucent white tank and a red base with four detachable legs.
The two models share the same basic construction and differ in overall height and water capacity. Operators can select the 12 L model for a larger water reserve or the 10 L model where a lower overall height is preferred.
Technische Spezifikationen
| Spezifikation | 402507 | 402508 |
| Produktcode | 402507 | 402508 |
| Material | 100% Virgin HDPE / PE | 100% Virgin HDPE / PE |
| Abmessungen | Φ360 × H470 mm | Φ360 × H380 mm |
| Kapazität | 12 L | 10 L |
| Farbe | Semi-translucent white barrel with red base & Beine | Semi-translucent white barrel with red base & Beine |
| Struktur | Gravity-fed water drinker with 4 detachable legs | Gravity-fed water drinker with 4 detachable legs |
| Handle | Heavy-duty galvanized steel handle | Heavy-duty galvanized steel handle |
| Anwendbares Vieh | Hühner, Broiler, Schichten, Truthähne, Enten, Gänse | Hühner, Broiler, Schichten, Truthähne, Enten, Gänse |
Hauptmerkmale
- Detachable Elevated Legs: Four removable legs raise the drinking unit above the litter surface. This helps separate the water outlet area from floor litter and manure.
- Semi-Translucent Tank: The tank allows operators to check the approximate remaining water level without opening the unit.
- Griff aus verzinktem Stahl: The metal handle supports carrying and can also be used for suspended installation where the housing layout requires an elevated water position.
- Gravity-Fed Water Supply: The drinker uses gravity flow rather than an electrical water supply system. This makes it suitable for independent drinking points in floor-raised poultry areas.
Landwirtschaftliche Anwendungen
These poultry drinkers are commonly used in open-range, free-range, and floor-raised poultry houses. The elevated configuration suits adult birds that require a higher drinking position.
Zu den typischen Anwendungen gehören::
- Broiler and layer houses
- Turkey and waterfowl housing
- Free-range poultry areas
- Floor-raised poultry production
- Independent drinking points where a central drinking line is not required
Für größere Geflügelställe, these drinkers can also serve as supplementary water points alongside an automatic poultry drinking system.
Installationstipps
Place the drinker on a stable and relatively level section of the poultry house floor. The four legs should sit firmly on the floor before birds enter the drinking area.
When suspension is preferred, use the galvanized steel handle and a suitable supporting structure. The installation height should match the bird age and production stage; adjust it according to normal farm practice.
Before initial use, fill the reservoir and check the gravity-flow water supply. Confirm that the drinking area provides sufficient access for the intended flock.
Wartung & Reinigungstipps
Clean the tank, Base, and drinking components regularly according to the farm’s water hygiene program. Remove litter, Futterreste, and other contamination from the drinking area.
The detachable legs also allow easier handling when the unit needs to be moved or cleaned. Inspect the handle, Beine, and plastic components during routine cleaning and replace damaged parts before continued use.
FAQ
Können die Beine entfernt werden??
Ja. The four elevated legs are detachable, allowing the unit to be used or stored according to the farm layout.
Was ist der Unterschied zwischen 402507 Und 402508?
Modell 402507 has a 12 L capacity and 470 mm overall height. Modell 402508 has a 10 L capacity and 380 mm overall height.
Can the drinker be suspended?
Ja. The galvanized steel handle supports suspended installation when the farm structure provides a suitable support point.
