Alimentador de pollos de pollos de aves de corral

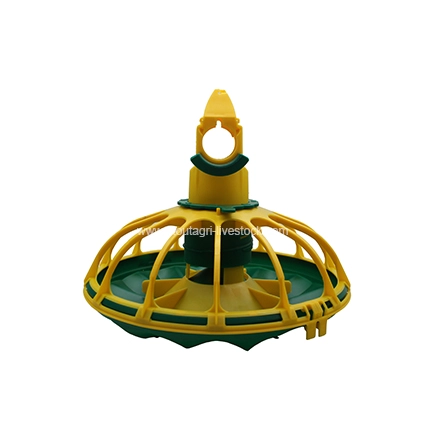

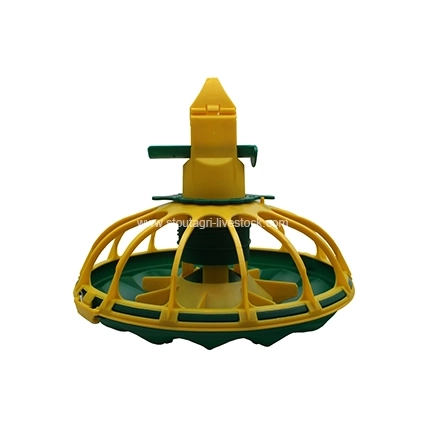

The Automatic Poultry Broiler Feeder is a 14-grid automatic pan feeder designed for commercial broiler houses and pullet rearing systems. It uses a Φ335 mm pan and connects with standard Φ45 mm auger feed pipes.
El alimentador proporciona 14 feeding grids around the pan, allowing multiple birds to access feed at the same time. Its stated capacity is 50–70 broilers per pan, depending on the feeding arrangement and flock requirements.
The 360° rotatable pan supports feed distribution around the feeding area. An anti-waste grill helps limit feed spillage during normal operation, while the detachable structure allows operators to remove components for cleaning and routine maintenance.
Especificaciones técnicas
| Especificación | Detalles |
| Código de producto | 421507 |
| Tipo de producto | 14-Grid Automatic Poultry Pan Feeder |
| Material | 100% High-Grade Pure PP (polipropileno) |
| Dimensiones | Φ335 mm × H315 mm |
| Número de cuadrículas | 14 rejillas de alimentación / openings |
| Capacidad de aves | 50–70 broilers per pan |
| Compatibilidad de tuberías | Tubos de alimentación de barrena estándar de Φ45 mm |
| Aplicaciones | Galpones comerciales para pollos de engorde, pullet rearing |
Características clave
Adjustable Feed Control
The feed-control ring allows operators to adjust the feed depth. This provides a practical way to adapt the pan to different operating conditions within the feeding system.
14 Feeding Grids
The pan incorporates 14 feeding grids or openings around its perimeter. Multiple birds can access the feeder simultaneously, supporting the stated capacity of 50–70 broilers per pan.
360° Rotatable Pan
The pan can rotate through 360°. This structure supports feed distribution around the feeding area as birds access the pan.
Anti-Waste Grill
The anti-waste grill helps limit feed spillage during feeding. This can help maintain a cleaner feeding area and reduce unnecessary feed loss in normal operation.
Fácil desmontaje
The feeder can be disassembled for thorough cleaning and routine maintenance. Operators can remove the relevant components when cleaning accumulated feed or inspecting the feeder structure.
Aplicaciones agrícolas
The Automatic Poultry Broiler Feeder is intended for commercial broiler houses and pullet rearing systems using automatic auger feeding lines.
In broiler houses, the feeder provides a circular feeding area with 14 access openings. The stated capacity is 50–70 broilers per pan, which can be used as a reference when planning feeder quantities.
For complete poultry house equipment planning, the feeding line can be coordinated with Bebederos para aves de corral according to the farm layout.
Consejos de instalación
Connect the feeder to a compatible standard Φ45 mm auger feed pipe and check the connection before operating the feeding line.
Install the pans in a consistent position along the feeding line. The feeding system should remain properly aligned so that each pan provides unobstructed access to the birds.
Antes de la operación, check the feed-control ring and adjust the feed depth according to the actual feeding requirements. Avoid making adjustments based on assumptions about feed consumption that are not supported by the supplied product specifications.
A Cabrestante manual para línea de alimentación may be incorporated where the overall feeding system requires manual line-height adjustment.
Mantenimiento & Consejos de limpieza
Limpiar el comedero según el programa de saneamiento del gallinero.. Remove accumulated feed and other material from the pan, rejillas de alimentación, and surrounding components.
Inspect the anti-waste grill regularly for deformation or damage. Check the feed-control ring to ensure that it remains correctly positioned and functions as intended.
Durante el mantenimiento de rutina, inspect the feeder connection to the Φ45 mm auger pipe. Also check the pan structure for visible cracks or other damage.
When thorough cleaning is required, disassemble the feeder according to the actual assembly structure. Reassemble all components correctly before restarting the feeding system.
Preguntas más frecuentes
How many broilers can one feeder serve?
The stated capacity is 50–70 broilers per pan.
¿Qué tubo de alimentación es compatible con este comedero??
The feeder fits standard Φ45 mm auger feed pipes.
