Bol à eau de vache automatique en acier inoxydable

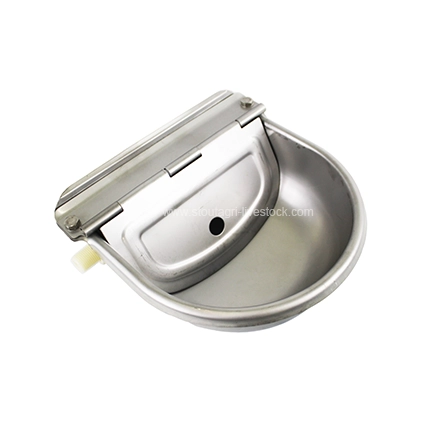

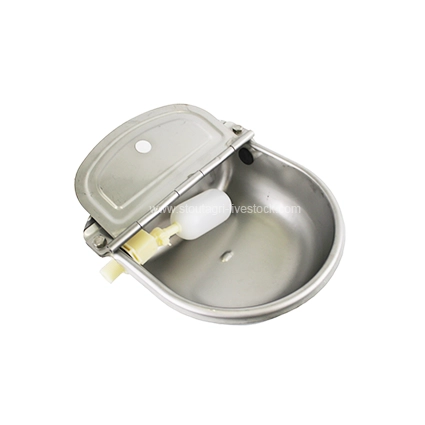

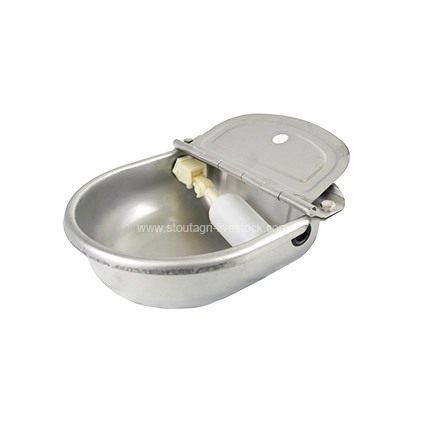

The Stainless Steel Automatic Cow Water Bowl provides a compact automatic drinking point for cattle and other livestock. Its 3-liter basin uses a float valve assembly to regulate incoming water and maintain the water level during normal operation.
The bowl uses heavy-gauge 304 stainless steel for the main body. A stainless steel protective cover encloses the float mechanism, tandis que le 1/2″ male inlet can be positioned on either the left or right side to suit different plumbing layouts.
La pression de fonctionnement recommandée est de 0,1 à 0,4 MPa (1.0–4,0 barres), with a specified water flow rate of 6.0–8.0 L/min at 0.2 MPa. The combination of automatic level control and a stainless steel basin makes the bowl suitable for individual drinking points in cattle and horse facilities.
Spécifications techniques
| Spécification | Détails |
| Code produit | 202102 |
| Type de produit | Stainless Steel Automatic Float Valve Livestock Drinking Bowl |
| Matériau du bol | Heavy-Gauge 304 Acier inoxydable |
| Dimensions (L × l × H) | 265 × 270 × 100 mm |
| Capacité | 3.0 Litres |
| Mechanism | Adjustable Plastic Float Valve Assembly |
| Protective Cover | Stainless Steel Flip Cover |
| Connexion d'entrée d'eau | 1/2″ Male Thread |
| Inlet Position | Left/Right Side Option |
| Pression de fonctionnement recommandée | 0.1–0,4 MPa (1.0–4,0 barres) |
| Débit d'eau | 6.0–8.0 L/min at 0.2 MPa |
| Bétail applicable | Bétail, Cows, Chevaux, Veaux, Chiens, Chèvres |
Principales fonctionnalités
- 304 bassine en acier inoxydable: The heavy-gauge stainless steel body provides a corrosion-resistant drinking surface for routine livestock use and cleaning.
- Protected float mechanism: The hinged stainless steel cover encloses the float assembly and helps shield the mechanism from direct animal contact and debris.
- Contrôle automatique du niveau d'eau: The adjustable float valve controls water entry as the bowl level changes, reducing the need for manual refilling.
- Flexible side inlet: Le 1/2″ male thread connection supports left- or right-side installation according to the available water pipe arrangement.
- Compact 3-liter capacity: The bowl provides a practical individual drinking point for the listed livestock without requiring a large basin.
Applications agricoles
This automatic drinking bowl is commonly used in cattle barns, écuries, calf areas, and other livestock housing areas where an individual automatic water supply is required.
For dairy and beef cattle, it can serve as a drinking point within individual stalls or pen areas. The same bowl is also specified for horses, veaux, dogs, et des chèvres, making it suitable for mixed livestock facilities where different animal groups require separate drinking points.
The 3-liter capacity and 6.0–8.0 L/min specified flow rate at 0.2 MPa should be considered together with the farm’s water supply pressure and pipe layout when planning the drinking system.
Conseils d'installation
Install the bowl on a rigid wall, post, or suitable structural support that can hold the unit securely during normal animal use. The inlet connection uses a 1/2″ filetage mâle, with the inlet available on either side of the bowl.
Avant l'installation, check the actual farm water pressure against the recommended 0.1–0.4 MPa operating range. En pratique, the water supply should provide sufficient flow at the drinking point without exceeding the specified pressure range.
Keep the bowl positioned where the intended animals can reach the drinking area comfortably while avoiding interference with gates, partitions, or other barn equipment.
After connecting the water pipe, inspect the threaded joint for leakage and operate the float valve before putting the drinking point into regular use.
Entretien & Conseils de nettoyage
Clean the stainless steel basin regularly to remove feed residue, saleté, algues, and other contaminants that can accumulate during daily livestock use. The cleaning interval should reflect the animal group, water quality, and barn conditions.
Inspect the float valve periodically to confirm that it moves freely and controls water entry correctly. Remove debris around the float mechanism if it affects the valve movement.
Check the inlet connection and surrounding pipe joint for leakage during routine barn inspections. If the water level becomes inconsistent, first inspect the float mechanism and water supply conditions before adjusting the valve.
The protective cover should remain correctly positioned after maintenance so the float mechanism stays protected during normal operation.
FAQ
What water pressure does this bowl require?
La pression de fonctionnement recommandée est de 0,1 à 0,4 MPa (1.0–4,0 barres). The specified flow rate is 6.0–8.0 L/min at 0.2 MPa.
Can the water inlet be installed on either side?
Oui. The bowl uses a 1/2″ male thread connection with a left/right side inlet option.
Which animals can use this drinking bowl?
The specified applications include cattle, cows, chevaux, veaux, dogs, et des chèvres.
