Waterer di bestiame automatico in plastica

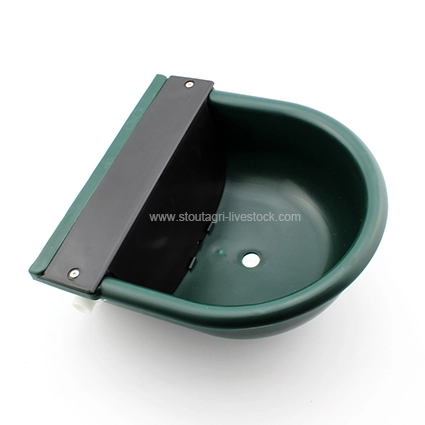

The Plastic Automatic Livestock Waterer is a 4-liter float-valve drinking bowl designed for automatic water replenishment in livestock pens and animal housing areas. The bowl uses high-density polyethylene, with a separate snap-on protective lid covering the float mechanism.
The adjustable float arm controls the water level inside the bowl. With a recommended operating pressure of 0.1–0.4 MPa and a water flow rate of 7.0–10.0 L/min at 0.2 MPa, the unit can be connected to commonly used livestock water lines within its specified operating range.
Specifiche tecniche
| Specifiche | Dettagli |
| Codice prodotto | 202501 |
| Descrizione | Polyethylene Automatic Float Valve Drinking Bowl |
| Materiale della ciotola | High-Density UV-Resistant Polyethylene (PE) |
| Cover Material | Heavy Plastic Snap-On Protective Lid |
| Dimensioni (L x P x A) | 280 × 270 × 125 mm |
| Capacità | 4.0 Litri |
| Colore | Dark Green Bowl / Black Lid |
| Tipo di meccanismo | Plastic Float Valve System with Adjustable Float Arm |
| Collegamento ingresso acqua | 1/2″ Male Thread Connection |
| Pressione operativa consigliata | 0.1–0,4MPa (1.0–4.0 Bar) |
| Portata dell'acqua | 7.0–10.0 L/min at 0.2 MPa |

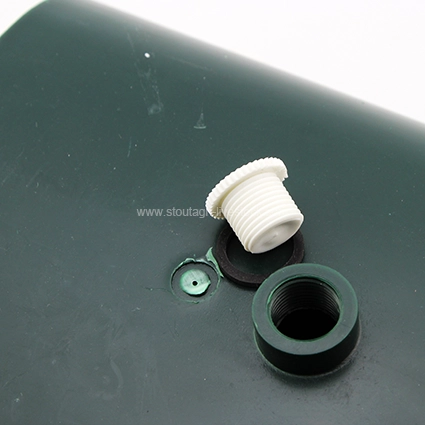

| Drenaggio | Bottom Drain Plug Included |
| Bestiame applicabile | Cavalli, Bestiame, Vitelli, Cani, Pecora |
Caratteristiche principali
- Float-controlled water supply: The float valve automatically controls water entry as the bowl level changes, reducing the need for manual filling.

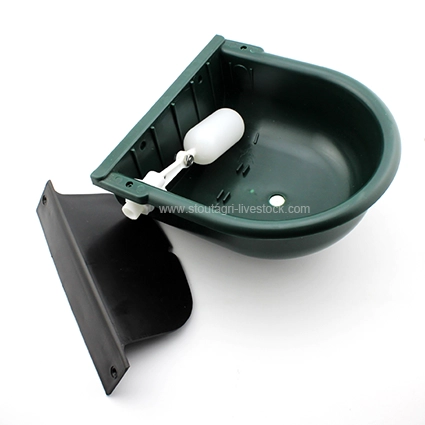

- Protective valve cover: The snap-on black lid separates the float mechanism from the open drinking area and helps protect the mechanism from direct animal contact and floating dirt.
- Adjustable water level: The float arm can be adjusted to set the operating water level according to the installation requirements.
- PE bowl construction: High-density polyethylene provides a non-metallic bowl body for applications where corrosion and rust are concerns.
- Bottom drainage: The integrated drain plug allows operators to empty the bowl during routine cleaning and water replacement.
Applicazioni agricole
The Plastic Automatic Livestock Waterer is suitable for cattle, vitelli, cavalli, pecora, capre, and dogs. It can be used in livestock pens, animal housing areas, horse facilities, and other locations where animals require an automatically replenished drinking point.
The 4-liter bowl capacity provides a practical water reserve between replenishment cycles, while the float mechanism maintains the water supply within the bowl. In pratica, installers should select the mounting location according to animal access, plumbing arrangement, and ease of routine cleaning.
Suggerimenti per l'installazione
Install the waterer on a rigid and stable support that can withstand normal animal contact. The supplied specification uses a 1/2″ male threaded water inlet, so the connecting fitting should match this thread size.
Keep the water line within the recommended operating pressure range of 0.1–0.4 MPa (1.0–4.0 Bar). Water pressure outside the specified range may affect valve operation and flow performance.
Dopo la connessione, open the water supply gradually and check the threaded connection and float valve for leakage. Adjust the float arm to establish the required water level, then confirm that the valve stops the water supply when the bowl reaches the selected level.
Position the bowl where animals can reach it easily while leaving sufficient access around the bottom drain plug for cleaning and water replacement.
Manutenzione & Consigli per la pulizia
Inspect the bowl, float mechanism, inlet connection, and drain plug regularly. Remove feed residue, biancheria da letto, alghe, or other contamination from the drinking area as part of the normal livestock watering routine.
Use the bottom drain plug to empty the bowl before cleaning. Rinse the bowl and check that the float arm moves freely without obstruction.
The protective lid should also be removed periodically so operators can inspect and clean the float valve compartment. If the valve does not shut off correctly, check the float arm and valve area for dirt or other obstruction before returning the unit to service.
Durante la manutenzione ordinaria, inspect the threaded water connection for leakage and confirm that the water flow remains within the specified operating conditions.
FAQ
Can the water level be adjusted?
SÌ. The waterer uses an adjustable float arm, which allows the operating water level to be set according to the installation requirement.
Quale pressione dell'acqua dovrebbe essere utilizzata?
The recommended operating pressure is 0.1–0.4 MPa (1.0–4.0 Bar).
How is the bowl emptied for cleaning?
The bowl includes a bottom drain plug that can be used to remove water during cleaning and water renewal.
