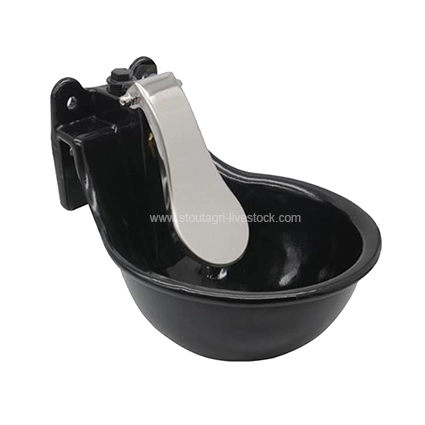

1.8L Miska do pojenia bydła
The 1.8L Livestock Drinking Bowl is a cast iron automatic water bowl for dairy cows, bydło mięsne, i konie. Zwierzę aktywuje język dociskowy ze stali nierdzewnej, aby otworzyć zawór wody, allowing the bowl to refill without manual operation.
The bowl measures 270 × 210 × 200 mm and holds 1.8 liters of water. Its stainless steel spring paddle valve uses a brass valve core and connects to a 1/2″ wlot z gwintem żeńskim.
The bowl supports both top and bottom inlet configurations. With a recommended operating pressure of 0.15–0.5 MPa, the specified water flow rate reaches 9.0–12.0 L/min at 0.3 MPa.
Dane techniczne
| Specyfikacja | Bliższe dane |
| Kod produktu | 201202 |
| Typ produktu | Standard Cast Iron Paddle Water Bowl |
| Materiał korpusu miski | Heavy Cast Iron |
| Materiał języka/wiosła | Język dociskowy ze stali nierdzewnej |
| Wymiary (Dł. × szer. × wys) | 270 × 210 × 200 mm |
| Pojemność | 1.8 Litry |
| Wykończenie powierzchni | Czarna powłoka proszkowa |
| Typ mechanizmu | Stainless Steel Spring Paddle Valve with Brass Valve Core |
| Podłączenie dopływu wody | 1/2″ Wątek żeński |
| Opcje wlotu | Szczyt / Dolny wlot |
| Zalecane ciśnienie robocze | 0.15–0,5 MPa (1.5–5,0 barów) |
| Natężenie przepływu wody | 9.0–12.0 L/min at 0.3 MPa |
| Obowiązujące zwierzęta gospodarskie | Dairy Cows, Beef Cattle, Konie |
Kluczowe funkcje
Wzmocniona konstrukcja montażowa
The broadened mounting bracket flange provides a substantial mounting interface for installation on suitable barn posts or walls. Installers should select fixing hardware according to the supporting structure and site conditions.

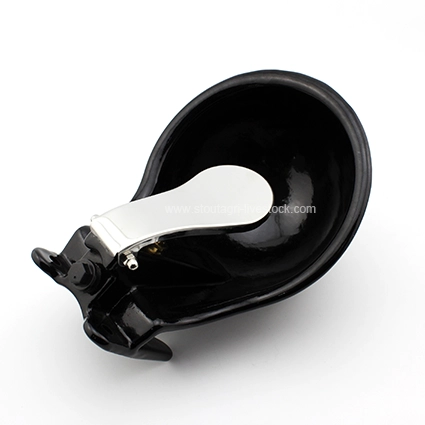

Język dociskowy ze stali nierdzewnej
The drinking mechanism uses a stainless steel press tongue connected to the spring paddle valve. The animal activates the paddle during drinking, while the valve controls water release.

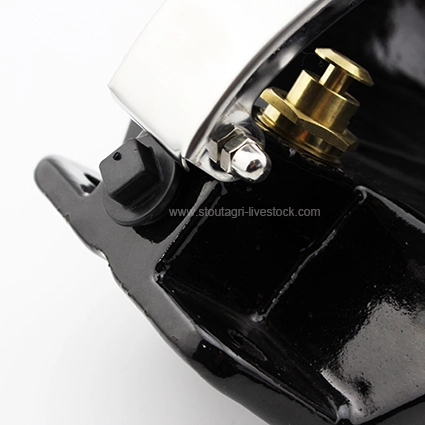

Brass Valve Core
The internal mechanism incorporates a brass valve core. This component forms part of the paddle-operated water control assembly and works with the stainless steel spring valve.
1.8-Liter Bowl Capacity
The 1.8-liter capacity provides a compact water reservoir for an individual drinking point. The bowl dimensions make it suitable for installation in cattle barns and horse stables where available space needs to be considered.
Flexible Inlet Configuration
1/2″ female threaded connection can use either a top or bottom inlet configuration. This allows the plumbing route to be selected according to the existing barn installation.
Aplikacje rolnicze
This bowl is intended for livestock housing where cattle or horses require an individual automatic drinking point. The specified livestock applications include dairy cows, bydło mięsne, i konie.
For cattle barns, the bowl can be installed at suitable fixed positions along pen structures or walls. The mounting arrangement should provide sufficient support for repeated animal contact and allow access to the paddle.
The top or bottom inlet option can simplify adaptation to different water pipe layouts. In new installations, the selected inlet position should be coordinated with the planned water line before fixing the bowl.
For retrofit projects, the compact bowl dimensions and two inlet options can help installers work around existing plumbing arrangements.
Wskazówki dotyczące instalacji
Mount the bowl on a firm structural surface capable of supporting the drinking point during normal livestock use. Position the bowl so the intended animals can comfortably reach the stainless steel paddle.
Select the top or bottom 1/2″ female inlet according to the available water pipe route. Check the threaded connection and pipework for leakage after installation.
Keep the water supply within the specified operating pressure range of 0.15–0.5 MPa. W rzeczywistości, installers should check the actual flow at the bowl after connecting the water line.
Na 0.3 MPa, the specified flow rate is 9.0–12.0 L/min. Actual site flow can vary with the water supply and plumbing arrangement.
Konserwacja & Wskazówki dotyczące czyszczenia
Inspect the paddle mechanism regularly during normal livestock-house maintenance. The stainless steel press tongue should move freely and operate the valve without obstruction.
Clean the bowl regularly to remove feed residue, nawóz, and other contamination. The black powder-coated surface supports routine washing as part of normal drinking-point hygiene.
If the water output becomes lower than expected, first check the incoming water pressure and pipework. Then inspect the paddle and valve area for dirt or other restrictions that could interfere with operation.
Periodically check the threaded water connection and mounting points. Tighten or repair connections when necessary to maintain reliable operation.
Często zadawane pytania
Can the water inlet be installed from either direction?
Tak. Miska ma 1/2″ połączenie z gwintem wewnętrznym z możliwością podłączenia od góry i od dołu. Select the configuration that best matches the barn’s water pipe layout.
What operating pressure should be used?
The recommended operating pressure is 0.15–0.5 MPa (1.5–5,0 barów). The specified flow rate is 9.0–12.0 L/min at 0.3 MPa.
Which livestock is this bowl designed for?
The specified applications are dairy cows, bydło mięsne, i konie.
