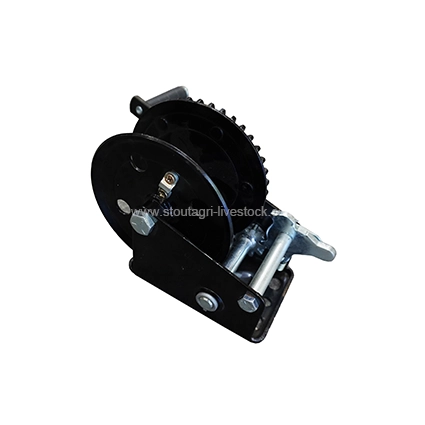

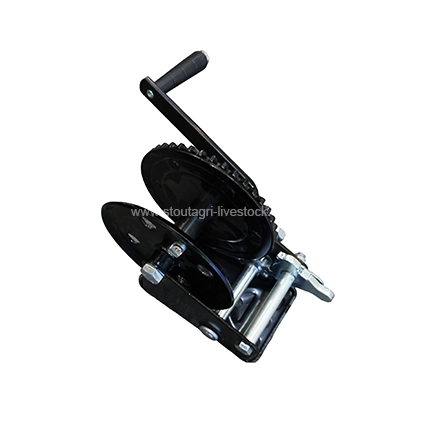

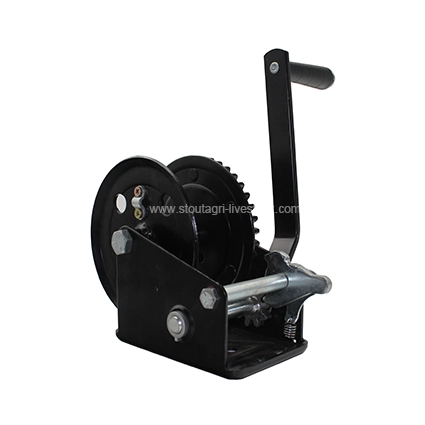

1200LBS Manual Winch
The 1200LBS Manual Winch is a compact poultry equipment component designed for light-duty lifting and adjustment applications in commercial and small-scale poultry facilities. It provides a practical solution for controlling suspended components such as brood curtains, inlet air flaps, and small coop equipment.
With a lifting capacity of 1,200 LBS (540 KG), this manual winch supports routine poultry house management tasks where operators need simple and controlled height adjustment. The 4.1:1 gear ratio provides faster winding operation for applications that require frequent adjustment rather than heavy load lifting.
The winch features a compact multi-slot base plate that allows flexible mounting according to the installation environment. It can be used with 1/8″ to 3/16″ (3.2 mm – 4.8 mm) steel cable or suitable high-tensile nylon cord/webbing straps based on the specific application requirements.
Dane techniczne
| Specyfikacja | Bliższe dane |
| Kod produktu | 431407 |
| Udźwig | 1,200 LBS / 540 KG |
| Przełożenie | 4.1:1 |
| Surface Color | Black anti-rust epoxy coating |
| Metoda montażu | Compact multi-slot base plate |
| Aplikacja docelowa | Light-duty line hoisting, brood curtain control, inlet air flap regulation, small coop suspension systems |
| Zalecany rozmiar kabla | 1/8″ to 3/16″ (3.2 mm – 4.8 mm) steel cable or high-tensile nylon cord/webbing straps |
Kluczowe funkcje
- Compact design for flexible installation
The compact structure allows installation in different poultry house locations where space is limited or where light-duty adjustment equipment is required. - Fast winding operation
The 4.1:1 gear ratio supports faster cable winding, making the winch suitable for applications requiring frequent lifting and lowering adjustments. - Multi-slot mounting base
The mounting plate provides multiple fixing positions, allowing installers to adapt the winch position according to the farm structure. - Suitable for multiple suspension applications
The winch can operate with steel cable or high-tensile cord/webbing systems for different light-load poultry equipment applications. - Protective surface coating
The black anti-rust epoxy coating helps protect the external surface during use in poultry house environments.
Aplikacje rolnicze
The 1200LBS Manual Winch is commonly used in poultry facilities where operators need manual control of lightweight suspended components.
Typowe zastosowania obejmują:
- Brooder curtain adjustment systems
- Poultry house inlet air flap regulation
- Small coop suspension systems
- Light-duty poultry equipment lifting points
- Auxiliary adjustment systems in broiler and layer houses
For larger suspended feeding or drinking systems, farms typically select higher-capacity winches according to total equipment weight and suspension layout.
Wskazówki dotyczące instalacji
- Install the winch on a stable structural support capable of handling the expected load.
- Select cable, cord, or webbing material according to the application and total suspended weight.
- Ensure the cable or strap runs smoothly without sharp bends or unnecessary friction points.
- Check the mounting position before operation to confirm sufficient clearance for the handle movement.
- Test the lifting mechanism under no-load conditions before connecting the complete system.
Konserwacja & Wskazówki dotyczące czyszczenia
- Inspect the cable, cord, or webbing regularly for wear, szkoda, lub deformacja.
- Check mounting bolts and fixing points during routine poultry house maintenance.
- Keep the gear mechanism clean and apply suitable lubrication when required.
- Remove dust, wilgoć, and corrosive deposits from the winch surface.
- Replace damaged lifting components before continuing operation.
Często zadawane pytania
What applications are suitable for this winch?
The 1200LBS Manual Winch is typically used for light-duty poultry applications such as brood curtains, inlet air flaps, and small suspension systems.
Can this winch be used with nylon straps?
Tak. The winch can be used with high-tensile nylon cord or webbing straps when the application load and installation method are suitable.
Is this winch suitable for poultry feeding line suspension?
It is designed mainly for light-duty adjustment systems. Larger feeding or drinking line suspension systems generally require higher-capacity winches.
