3 – 1/2″ Nylonowe koło pasowe
The 3 – 1/2″ Nylon Pulley is a suspension component used in poultry house equipment lifting systems. It provides a guiding and supporting point for winching ropes or cables used with poultry drinking lines, feeding pans, and curtain systems.

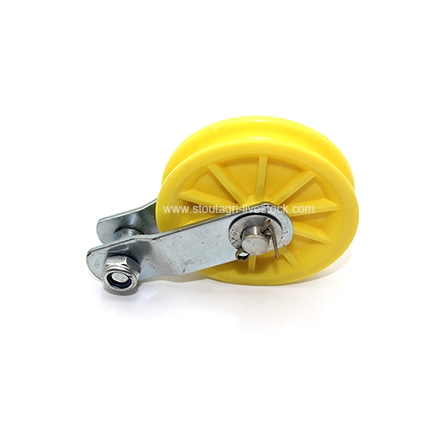

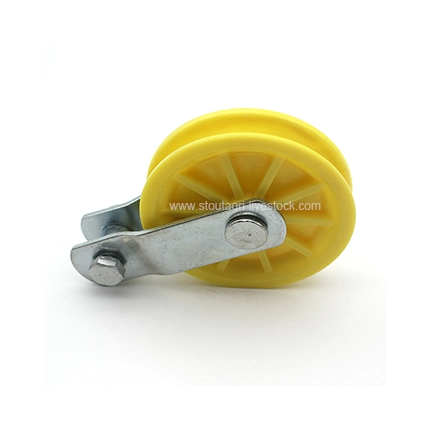

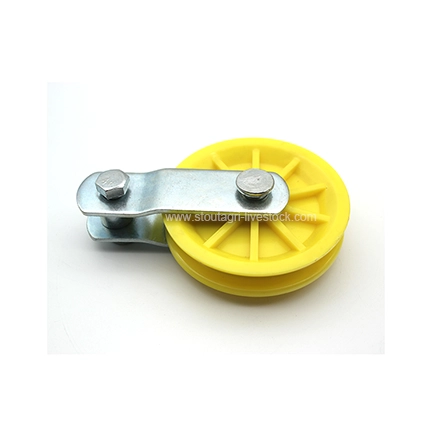

The pulley features a Φ90mm wheel made from high-density nylon (PA) and a heavy-duty galvanized steel bracket. This structure allows the pulley to operate in farm environments where equipment suspension systems require regular adjustment and movement.
It is commonly installed as part of poultry drinking line winching systems, feeding equipment suspension arrangements, and side curtain lifting systems.
Dane techniczne
| Specyfikacja | Bliższe dane |
| Kod produktu | 430501 |
| Typ produktu | Heavy-Duty Suspension Pulley |
| Wheel Diameter | Φ90mm (3-1/2 inch) |
| Materiał koła | High-Density Nylon / PA (Polyamide) |
| Materiał wspornika | Heavy-Duty Galvanized Steel Frame |
| Wheel Color | Żółty, Czerwony, Biały (Custom color available) |
| Główne zastosowania | Drinking water lines, feeding pans, curtain systems |
| Installation Use | Main suspension winching lines |
Kluczowe funkcje
High-Density Nylon Pulley Wheel
The pulley uses a wear-resistant high-density nylon wheel to support smooth rope or cable movement during lifting operations.
Galvanized Steel Bracket Structure
The galvanized steel frame provides a stable mounting structure for poultry house suspension applications and helps resist rust and corrosion in farm conditions.
Multi-System Compatibility
The pulley can be used with different poultry equipment suspension systems, including drinking lines, feeding pans, and curtain mechanisms.
Smooth Suspension Operation
The wheel design helps reduce friction during lifting and lowering operations, making routine height adjustment of farm equipment easier.
Farm Environment Adaptability
The combination of nylon wheel and galvanized bracket suits common poultry house environments where equipment requires frequent adjustment.
Aplikacje rolnicze
The 3 – 1/2″ Nylon Pulley is commonly used in poultry production facilities for:
- Automatic poultry drinking line suspension systems
- Poultry feeding pan lifting systems
- Side curtain and ventilation curtain control systems
- Kurniki dla brojlerów
- Layer and breeder poultry facilities
- Other livestock equipment requiring overhead suspension adjustment
The pulley is typically installed together with a drinking line hand winch to create a complete poultry drinking line lifting system.
Wskazówki dotyczące instalacji
- Install the pulley bracket securely on the poultry house supporting structure.
- Ensure the pulley wheel aligns with the lifting rope or cable direction before operation.
- Check that the suspension line runs smoothly through the pulley groove.
- Use a suitable number of pulleys according to the equipment weight and suspension layout.
- Confirm that all connection points remain secure after initial installation and adjustment.
Konserwacja & Wskazówki dotyczące czyszczenia
- Inspect the nylon wheel regularly for excessive wear or damage.
- Check the galvanized bracket for deformation or corrosion.
- Remove dust, pióra, and debris from the pulley area during routine farm cleaning.
- Confirm that the wheel rotates smoothly during equipment adjustment.
- Replace damaged pulleys before they affect the suspension system operation.
Często zadawane pytania
What equipment can use this pulley?
The pulley is commonly used for poultry drinking lines, feeding pans, and curtain suspension systems.
What is the wheel material?
The wheel is made from high-density nylon / PA (Polyamide).
Can the pulley color be customized?
Tak. Standard colors include yellow, red, white, with custom colors available upon request.
