Powder-coated Automatic Livestock Water Bowl

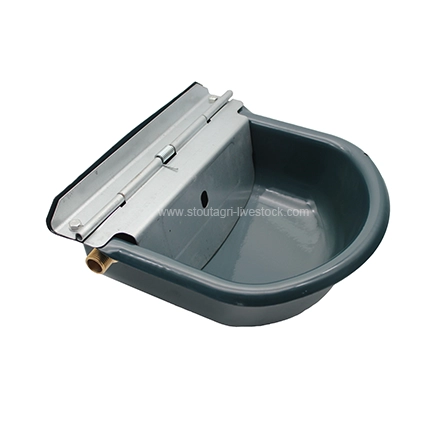

The Powder-coated Automatic Livestock Water Bowl provides an automatic drinking point for cattle, horses, calves, and dogs. A heavy stamped steel bowl supports the drinking area, while a brass float valve controls incoming water according to the water level.

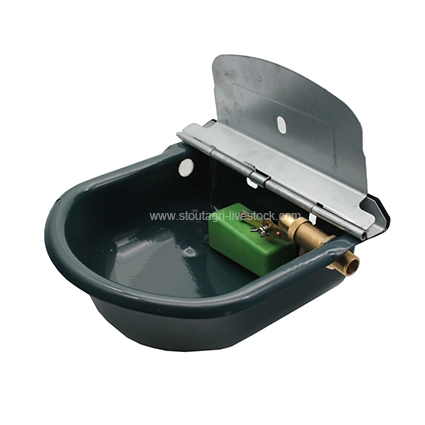

The 2.5-liter bowl has a smooth powder-coated surface and uses a metallic protective cover over the valve mechanism. The cover helps shield the float assembly from hay, feed, manure, and other material that may enter the drinking area during normal farm operation.

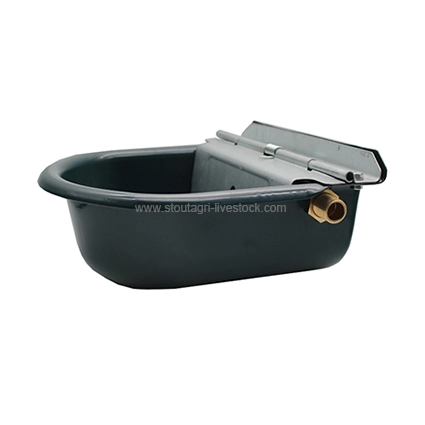

The float mechanism includes wing-nut adjustment for setting the operating water level. The 1/2″ brass threaded connection provides the water inlet, while the specified operating pressure range is 0.1–0.4 MPa (1.0–4.0 Bar).
Technical Specifications
| Specification | Details |
| Product Code | 202401 |
| Product Type | Powder-Coated Steel Automatic Water Bowl |
| Bowl Material | Heavy Stamped Steel Plate with Protective Coating |
| Cover Material | Stainless Steel / Galvanized Steel Protective Lid |
| Valve Material | Heavy Brass Valve with Plastic Float |
| Dimensions (L × W × H) | 257 × 280 × 148 mm |
| Capacity | 2.5 Liters |
| Surface Finish | Smooth Powder Coating, Grey/Charcoal |
| Mechanism | Heavy Brass Float Valve with Wing-Nut Adjustment |
| Water Inlet Connection | 1/2″ Brass Threaded Connection |
| Recommended Operating Pressure | 0.1–0.4 MPa (1.0–4.0 Bar) |
| Water Flow Rate | 6.0–9.0 L/min at 0.2 MPa |
| Applicable Livestock | Horses, Cattle, Calves, Dogs |
Key Features
- Adjustable float valve: The wing-nut adjustment allows the operator to set the water reserve according to the requirements of the installation.
- Stamped steel bowl: The rigid steel body provides structural support for regular livestock drinking use.
- Brass valve mechanism: The heavy brass valve controls water entry as the float position changes.
- Protected valve compartment: The metallic cover helps reduce direct exposure of the float mechanism to hay, feed, and manure.
- Powder-coated surface: The smooth coating provides the specified protective finish for the steel bowl.
Farm Applications
This water bowl is commonly used in cattle pens, horse stables, calf areas, and other livestock housing areas where an automatic individual drinking point is required.
For cattle and horses, the bowl can be installed at suitable drinking locations along walls, posts, or other rigid farm structures. Its 2.5-liter capacity provides a compact drinking basin while the float valve automatically controls incoming water.
The product also suits calves and dogs according to the specified application range. When planning installation, the available water pressure and pipe arrangement should be checked against the bowl’s operating requirements.
Installation Tips
Mount the bowl securely to a rigid supporting structure suitable for livestock facilities. The 1/2″ brass threaded inlet should connect to a compatible water supply fitting.
Before commissioning, check that the supply pressure falls within the recommended 0.1–0.4 MPa range. In practice, flush the supply pipe before connecting the valve to reduce the risk of debris entering the mechanism.
Adjust the float position using the wing nut after connecting the water supply. Check the resulting water level and inspect the threaded connection for leakage.
Maintenance & Cleaning Tips
Clean the drinking bowl regularly according to livestock density, water quality, and barn conditions. Remove feed residue, dirt, and other contamination from the bowl surface and around the protective cover.
Inspect the float mechanism during routine maintenance. If the water level becomes abnormal, check for debris around the float and confirm that the float moves freely.
Also inspect the water inlet connection for leakage. Keep the protective cover correctly positioned after cleaning or adjustment to protect the float mechanism during normal operation.
FAQ
How do I adjust the water level?
Use the wing-nut adjustment on the float mechanism to change the operating position of the float. Make small adjustments and check the resulting water level.
What water pressure should the bowl use?
The recommended operating pressure is 0.1–0.4 MPa (1.0–4.0 Bar). The specified flow rate is 6.0–9.0 L/min at 0.2 MPa.
What animals can use this bowl?
The specified applications are horses, cattle, calves, and dogs.
