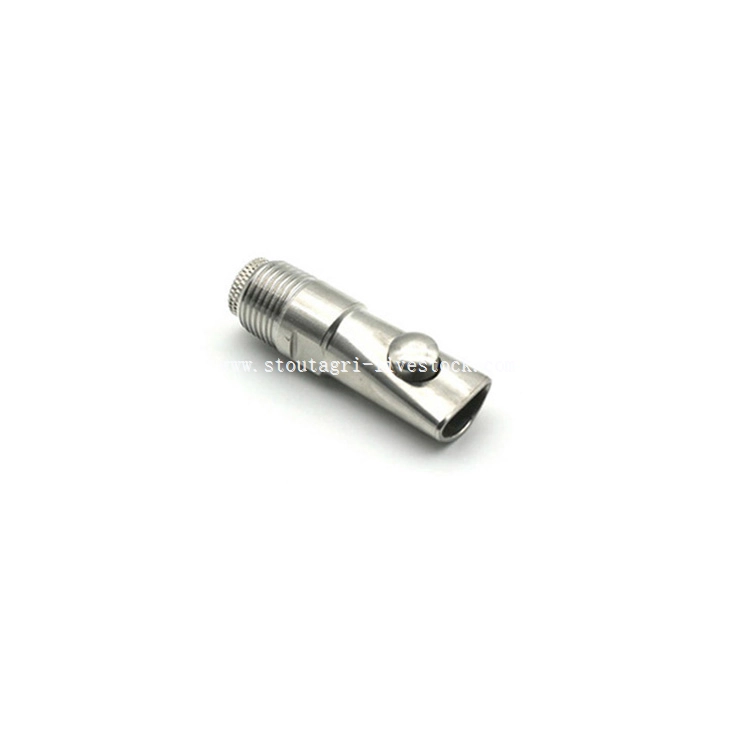

Drinatore di capezzoli per giovane bestiame
Providing clean and easily accessible water is essential during the first weeks after weaning. This Nipple Drinker for Young Livestock is developed for piglets weighing less than 5 kg and is commonly installed in nursery pens, aree di scorrimento, and early-stage drinking systems.
The compact stainless steel drinker operates effectively under relatively low water pressure and delivers a controlled flow rate suitable for young animals. Its design helps piglets adapt to automatic watering systems while supporting water availability throughout the day.
Specifiche tecniche
| Articolo | Specifiche |
| Prodotto n. | 102104 |
| Materiale | 201 Acciaio inossidabile / 304 Acciaio inossidabile |
| Lunghezza | 68 mm |
| Connessione | 1/2″ Filo × 1/2″ Corpo |
| Pressione dell'acqua consigliata | 0.1-0.25 MPa (15-36 psi) |
| Portata consigliata | 0.6-1.0 l/min |
| Categoria Suina | Suinetti svezzati |
| Peso del maiale | < 5 kg |
Caratteristiche principali
- Stainless steel construction for long service life in livestock environments.
- Compact body size suitable for small piglets learning to use nipple drinkers.
- Operates efficiently at lower water pressures commonly used in nursery systems.
- Provides controlled water flow to help reduce unnecessary water waste.
- Norma 1/2″ threaded connection allows easy installation in most sistemi di abbeveraggio per suini.
- Disponibile in entrambi 201 E 304 stainless steel to match different project requirements.
Applicazioni agricole
- Recinti per la scuola materna dei suinetti
- Case di svezzamento
- Early-stage pig production facilities
- Automatic drinking lines for small pigs
- Individual nursery drinking stations
Suggerimenti per l'installazione
Pratiche di installazione consigliate:
- Mount the nipple 10-15 cm sopra il livello del pavimento.
- Install with a downward angle between 15° and 30°.
- Maintain water pressure within the recommended operating range.
- Ensure adequate support for water pipes to prevent movement.
- Check flow rate after installation and adjust regulators if necessary.
When introducing newly weaned piglets, water availability should be verified frequently during the first days after placement.
Manutenzione & Consigli per la pulizia
- Check nipples regularly for feed dust or mineral buildup.
- Flush drinking lines periodically according to farm management practices.
- Inspect threaded connections for leaks.
- Replace worn seals or internal components when necessary.
- Verify water flow consistency during routine barn inspections.
Domande frequenti
Is this drinker suitable for grower pigs?
It is primarily designed for piglets weighing less than 5 kg. Larger pigs typically require higher-flow drinkers.
What material options are available?
Il bevitore è disponibile in entrambi 201 acciaio inossidabile e 304 acciaio inossidabile.
Quale pressione dell'acqua è consigliata?
La pressione operativa consigliata è 0.1-0.25 MPa (15-36 psi).
Can it be used in automatic drinking systems?
SÌ. La norma 1/2″ threaded connection allows integration into most nursery drinking lines.
