Bevitore di capezzoli per maialini

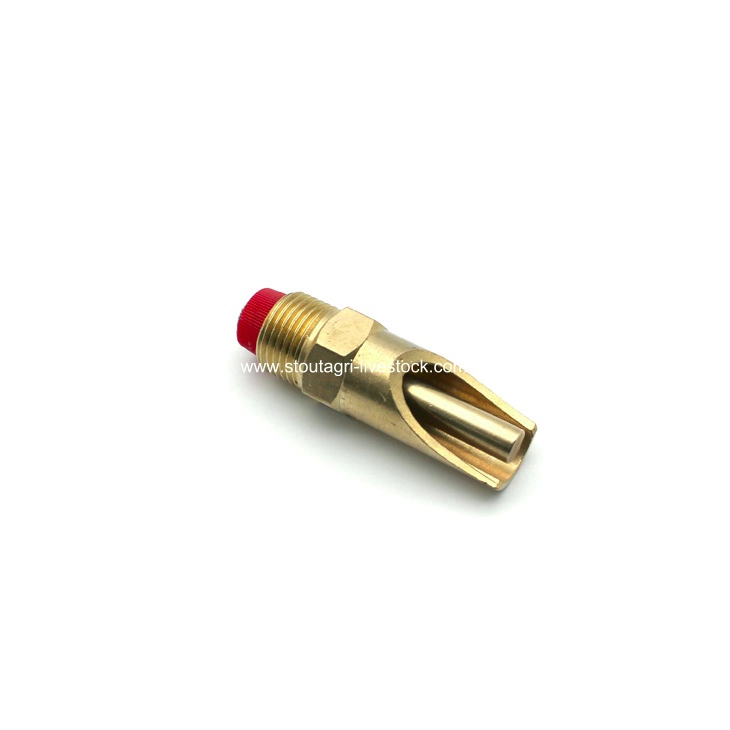

The Duck-Bill Pig Nipple Drinker is a compact watering device developed specifically for nursery pig applications. Its duck-bill style valve allows young pigs to activate the drinker easily, helping them adapt quickly after weaning and encouraging consistent water intake.
With a brass body and standard 1/2-inch threaded connection, the drinker integrates easily into most pig farm drinking systems. The controlled flow rate is suitable for smaller pigs and helps reduce excessive water wastage commonly associated with oversized drinkers.
Specifiche tecniche
| Articolo | Specifiche |
| Prodotto n. | 100302 |
| Materiale | Ottone |
| Lunghezza | 74 mm |
| Dimensione filettatura | 1/2″ thread |
| Dimensioni del corpo | 1/2″ body |
| Pressione dell'acqua consigliata | 0.15–0,3MPa (22–44 PSI) |
| Portata consigliata | 1.0–1.2 L/min |
| Suitable Pig Types | Suini della scuola materna |
| Suini consigliati per abbeveratoio | 8–12 |
Caratteristiche principali
- Duck-bill valve design suitable for young pigs
- Brass construction for durability and long service life
- Controlled water flow helps reduce unnecessary spillage
- Compact size simplifies installation in nursery pens
- Standard 1/2-inch connection fits common watering systems
- Supports efficient water access during the nursery stage
- Suitable for both new installations and replacement projects
Applicazioni agricole
- Casette per suini da svezzamento
- Weaning facilities
- Pig breeding farms
- Piglet development pens
- Sistemi di abbeveraggio automatici per suini
The unit can be integrated into centralized drinking systems and used alongside other pig watering equipment throughout different production stages.
Suggerimenti per l'installazione
Proper installation helps ensure reliable operation and encourages pigs to drink comfortably.
- Maintain water pressure within the recommended range of 0.15–0.3 MPa.
- Install drinkers securely to prevent movement during use.
- Position drinkers where pigs can access them easily without competition.
- Flush pipelines before installation to remove debris.
- Inspect threaded connections carefully to prevent leakage.
Manutenzione & Consigli per la pulizia
Regular inspection helps maintain water quality and stable performance.
- Check the valve regularly for smooth operation.
- Remove mineral deposits or feed residue when necessary.
- Inspect water lines for blockage or contamination.
- Replace worn components during routine maintenance cycles.
- Verify that water pressure remains within the recommended range.
Routine cleaning can help maintain consistent water flow and improve overall system reliability.
Domande frequenti
Quale pressione dell'acqua dovrebbe essere utilizzata?
The recommended operating pressure is 0.15–0.3 MPa (22–44 PSI).
Quanti maiali possono condividere un abbeveratoio?
The recommended capacity is approximately 8–12 nursery pigs per drinker.
Why use a duck-bill style drinker?
The duck-bill valve design is commonly chosen for young pigs because it is easy to activate and provides a controlled water flow suitable for nursery applications.
